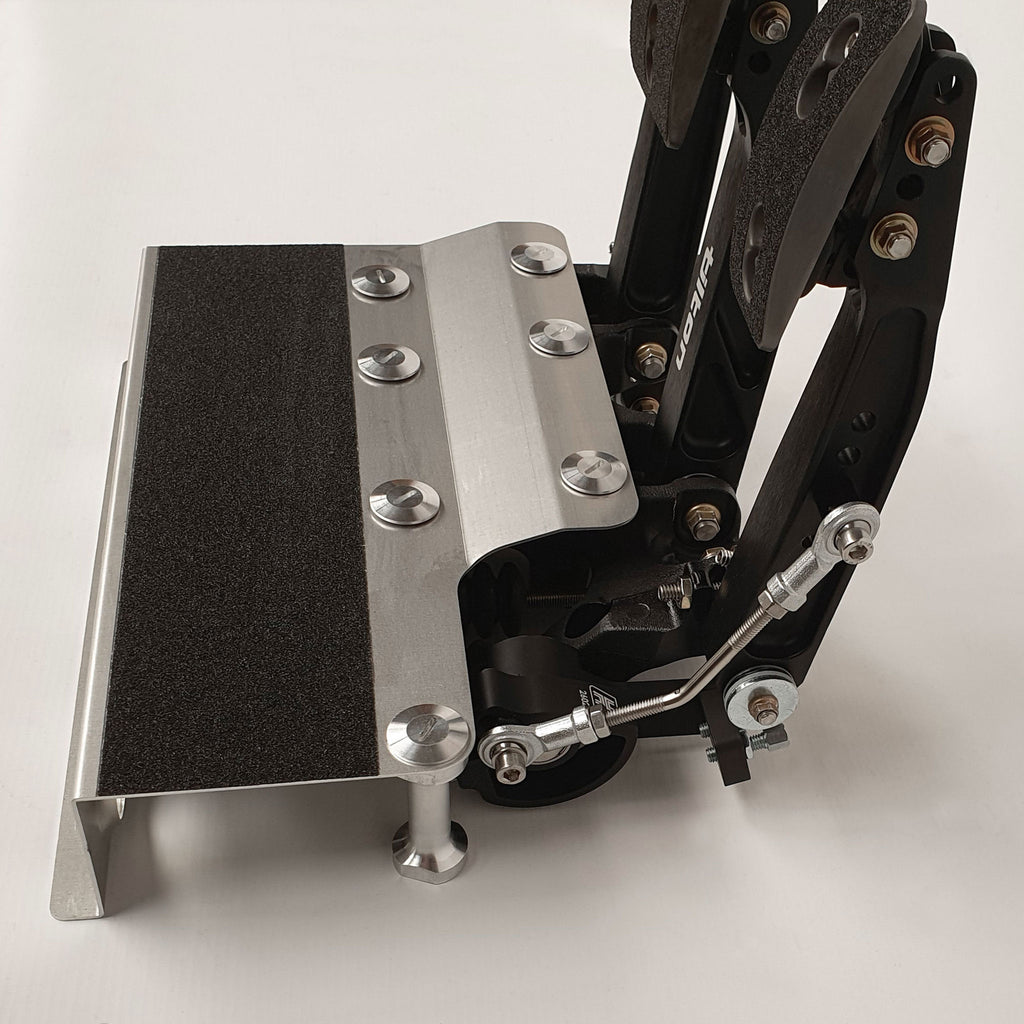

tilton pedal Tilton 72-616 Pedal Box (Underfoot) with Cylinders, Throttle Link & Heel Rest – C Bradley MotorsportTilton 600 Series 72 616 3 Pedal Floor Mounted Pedal Box featuring a rear facing master cylinder layout (cylinders will sit under the driver's feet). Complete with C Bradley Spec Throttle Linkage, Heel Rest and 76 Series Master Cylinders. Includes 1x Tilton 600 Series 72 616 3 Pedal Assembly 1x Throttle Linkage (Revised C Bradley Spec) 1x Alloy Heel Tray with Heel Grip 2x 76 Series 0. 625" Master Cylinders 1x 76 Series 0. 700" Master Cylinder Other
Tilton 600 Series 72-616 3-Pedal Floor Mounted Pedal Box featuring a rear-facing master cylinder layout (cylinders will sit under the driver's feet). Complete with C Bradley Spec Throttle Linkage, Heel Rest and 76-Series Master Cylinders.
Includes
Other Master Cylinder Bore Sizes available on request.
The rear-facing master cylinder layout enables the pedals to be mounted further forward, which allows a greater range of driver seating positions.
Forged aluminum pedals and an aluminum frame give the Tilton 72-616 underfoot pedal assembly rigid and lightweight support for even the most grueling applications. Included with the assembly is a large 7/16”-20 balance bar, which minimizes flex and provides a solid pedal feel. Action on the pedals is kept smooth and consistent with low friction oil-impregnated bushings on the pedal pivots.
Our C Bradley Spec Throttle Linkage is simpler to install compared to the standard, simply bolt it in and attach cables with easy clamping. It has been designed to optimise pedal travel, with pedal ratio adjustment.
Features
Optional Extras
Tilton Bias Flexi Adjusters
Alloy Base Plate
